HKS Hipermax S Coilovers for Nissan S15 Silvia

(No reviews yet) Write a Review
SKU:
HKS80300-AN002
UPC:
4957266322055
MPN:
80300-AN002
Condition:
New
Availability:
Regularly stocked product
MSRP: $1,840.00
$1,656.00
— You save $184.00

Description

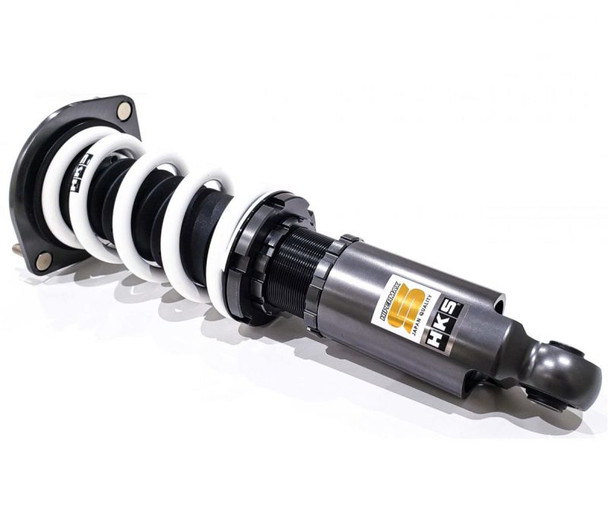

HKS Hipermax S Coilovers for Nissan S15 Silvia

Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.  No camber adjustment with these coilovers.

Application

Engine SR20DET
Model Year 99/01 - 02/08
Remarks NO Camber Adj.



Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket 〇 〇
Upper mount Rubber Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Impossible Impossible
Damping force adjustment with wire - 〇
Helper spring
(Spring rate N/mm)		 - 〇 (19.8)



Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 630 ← 677 ～ 604 677 ～ 604
Against stock -47 ← 0 ～ -73 0 ～ -73
REAR Ride height *1 637 ← 682 ～　647 682 ～　597
Against stock -45 ← -12 ～ -35 -12 ～ -85

Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6.0 ) 49 ( 5.0 )
Free height (mm) 220 250
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 500 / 412 365 / 284
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 40 / 76 71 / 78

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 236 ← 279 215 493 ← 526 469
Spring
Set length(mm)		 219 ← 215 224 309 ← 309 325
Length to ride hight
adjuster (mm)		 26 ← 73 0 120 ← 153 80
Lever ratio 1 1

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.

Test vehicle information

  F R
Vehicle weight kg 692 　(690) 577 　(550)
Tire size (Air pressure) kPa 225 / 40 - 18 ( 220 ) 255 / 35 - 18 ( 220 )
Wheel size 8.0 JJ × 18 inset 30 9.0 JJ × 18 inset 38
Alignment
(Toe/Camber)		 Test data out 0 mm / -1°42' in 0 mm / -4°00'
Standard value in 2 ± 1 mm / -1°00' ± 0°45' in 2.6 ± 2.6 mm / -1°25' ± 0°30'

* Test data at HKS.
